HOLIDAY DETECTORS

ISOTEST®HOLIDAY DETECTORS

  • Simple and efficient porosity testing thanks to cutting-edge technology and appropriate accessories for any application
  • Testing of humid, dirty and even slightly conductive surfaces
  • Reliable holiday detection of completely coated objects by means of phantom grounding (capacitive grounding)
  • The patented automatic regulation guarantees stable test voltages in any test situation
  • Power reserve for demanding test situations
  • Self-calibrating high voltage generation– automatic calibration within a few seconds every time the device is switched on
  • Pipe diameters from DN 50 up to DN1600 can be tested in a single pass
  • Up to 10 years warranty*

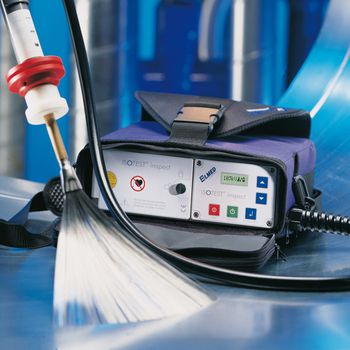

ISOTEST Inspect

ISOTEST inspect 8.0

Test voltage 0.5 - 8.0 kV, 0.5 kV steps
These instruments have been specially developed for testing sensitive coatings like FBE, enamel, epoxy, Halar etc. Benefits: An intelligent signal analysis makes it possible to test completely coated parts. The menu-driven sensitivity of the instrument guarantees exact test results

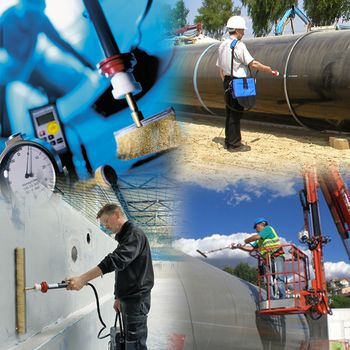

ISOTEST inspect 35

Test voltage 5-35kV, 0.1 kV steps
Performance for every application
Benefits: Energy reserves for the most demanding test situations, thanks to impulse voltage technology. The ISOTEST inspect can cope with large diameter, humid, dirty and even only slightly con- ductive surfaces

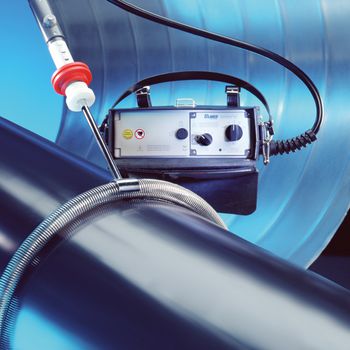

ISOTEST 4S

ISOTEST 4S

Test voltage 10-25 kV, 5 kV steps
Sufficient reserves of energy for the most demanding requirements by means of impulse voltage technology. The patented automatic regulation guarantees a precise test voltage. Its robust, hardwearing technology makes the ISOTEST 4S suitable for the rough and tumble of everyday testing. Its ease of use bears witness to the years of experience built into the instrument

ISOTEST 4S plus5

Test voltage 5-35 kV, 7 voltage steps of your choice
Sufficient reserves of energy for the most demanding requirements by means of impulse voltage technology.
The patented automatic regulation guarantees a precise test voltage. Its robust, hardwearing technology makes the ISOTEST 4S plus suitable for the rough and tumble of everyday testing. Its ease of use bears witness to the years of experience built into the instrument

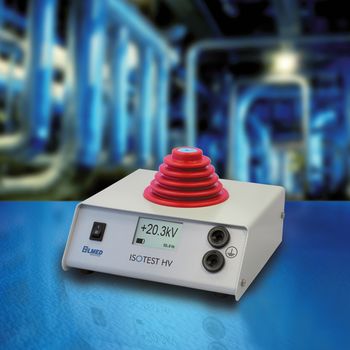

ISOTEST HV

The compact and robust measuring device allows a precise measuring of the impulse test voltages of ISOTEST® holiday detectors. The result can be read easily on the large display with an accuracy of 0.1 kV. The battery-powered device comes with a PTB-traceable calibration that is recognised by all accredited certification bodies.
